Apparatuses
The inherent heat resistance and chemical stability of precious metals make them indispensable for various devices, including crucibles used in oxide single crystal growth, as well as analytical instruments utilized in the laboratory field. Our company offers products in a wide range of standard shapes and also specializes in custom-made equipment, even in small quantities.
We can provide processing for not only platinum but also the challenging-to-process material, iridium.

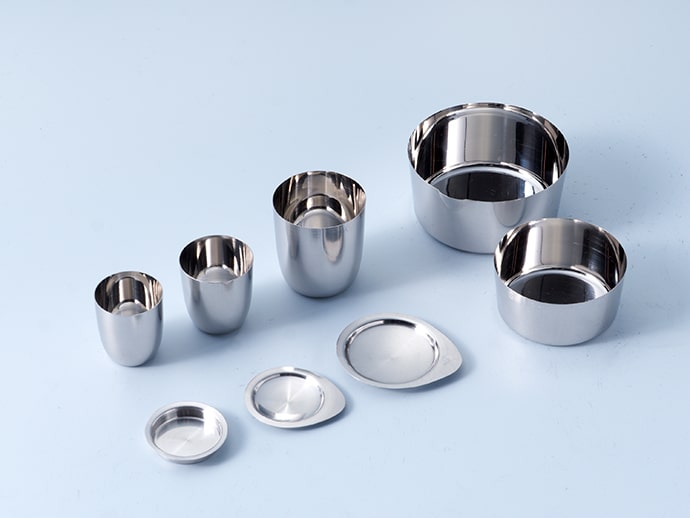

Platinum apparatuses - Equivalent to JIS Standards
- Overview
- Our platinum crucibles for chemical analysis are available in two types: "General Use Platinum Crucibles" and "Platinum Crucibles for Coal and Coke." Both types comply with the JIS H 6201:1986 standard.
- Chemical composition
- Platinum: 99.9% or higher, Other Elements (Palladium, Rhodium, Ruthenium, Iridium, Gold, Silver, Copper, and Iron): less than 0.1%
- *Excerpt from JIS H 6201:1986
- *Our standard is 99.95% platinum or greater.
Crucibles
| Product name | Reference capacity (ml) | Main body | Lid | |||||
|---|---|---|---|---|---|---|---|---|
| Dimensions (mm) | Mass (g) | Reference dimensions (mm) | Mass (g) | |||||
| D1 | D2 | H | Main body | d | h | Lid | ||
| PTCR 10 | 10 | 25 | 15 | 27 | 8 | 24 | 2 | 2 |
| PTCR 15 | 15 | 28 | 17 | 31 | 12 | 27 | 2 | 3 |
| PTCR 20 | 20 | 32 | 19 | 34 | 16 | 31 | 3 | 4 |
| PTCR 25 | 25 | 34 | 20 | 38 | 20 | 33 | 3 | 5 |
| PTCR 30 | 30 | 36 | 22 | 40 | 24 | 35 | 3 | 6 |
| PTCR 40 | 40 | 41 | 25 | 45 | 33 | 40 | 3 | 7 |
| PTCR 50 | 50 | 44 | 27 | 47 | 42 | 43 | 3 | 8 |
Evaporating dish
The base (D2) can accommodate both flat and round bottoms. The pouring spout is also available upon request.
| Product name | Reference capacity (ml) | Dimensions (mm) | Mass (g) | ||
|---|---|---|---|---|---|
| D1 | D2 | H | |||
| PTDR35 | 35 | 50 | 45 | 25 | 20 |
| PTDR50 | 50 | 60 | 54 | 28 | 27 |
| PTDR75 | 75 | 65 | 59 | 30 | 30 |
| PTDR90 | 90 | 70 | 63 | 35 | 35 |
| PTDR100 | 100 | 75 | 68 | 36 | 40 |
| PTDR150 | 150 | 80 | 72 | 38 | 55 |
| PTDR200 | 200 | 90 | 81 | 45 | 75 |
Crucibles for single crystal growth
- Overview
- We offer a comprehensive manufacturing system for single crystal growth crucibles, from melting to plate processing and shaping. We also provide refining and remelting services. We can accommodate various shapes such as dies and seed holders, depending on the application. We are capable of performing modifications and repairs, including reshaping and welding repairs.
- Materials
- Platinum, iridium, platinum alloys, and more. Please contact us for inquiries regarding other materials.
Straight body crucible
| No. | Dimensions (mm) | ||
|---|---|---|---|
| Outer diameter (OD) | Inner diameter (ID) | Height (H) | |
| 1 | 50 | 47 | 50 |
| 2 | 53 | 50 | 50 |
| 3 | 80 | 76 | 80 |
| 4 | 100 | 96 | 100 |
| 5 | 110 | 106 | 110 |
| 6 | 140 | 136 | 140 |
| 7 | 150 | 146 | 150 |
| 8 | 160 | 156 | 160 |
Bridgman crucible
Please refer to the dimensions provided in the diagram below for inquiries.
Other platinum-based apparatuses
- Overview
- We accept custom shapes and materials beyond standard products. Prototyping is also available, so please feel free to consult with us.
- Examples of products
- Tongs, tweezers, platinum electrode apparatuses, solders, spatulas, bead dishes.
